| Stock Box |
1419mm x 1900mm x 1100mm with flared top |
| Cutting Rotor |
1459mm x 370mm |
| Cutting Tools |
80 x 40mm square (4 sided and turnable) |
| Rotor Speed |
50-100rpm |
| Particle Size |
5-50mm depending on screen perforation |
| Screen size - specified |
40mm diameter perforation |
| Power - Main Motor |
45kw |
| Hydraulic Pack |
5.5kw with fast approach/reverse |
| Capacity |
2-8 box loads per hour |
| Waste Outlet |
Gravity discharge below screen or air extraction |
| Supply - Mains |
380-415/3/50 + Neutral |
| Control |
24v a.c. |
| Control Panel |
Wall mounted pre-wired cable to shredder |
| Control PC |
Mitsubishi FXO plc |
| Weight |
5500kg |

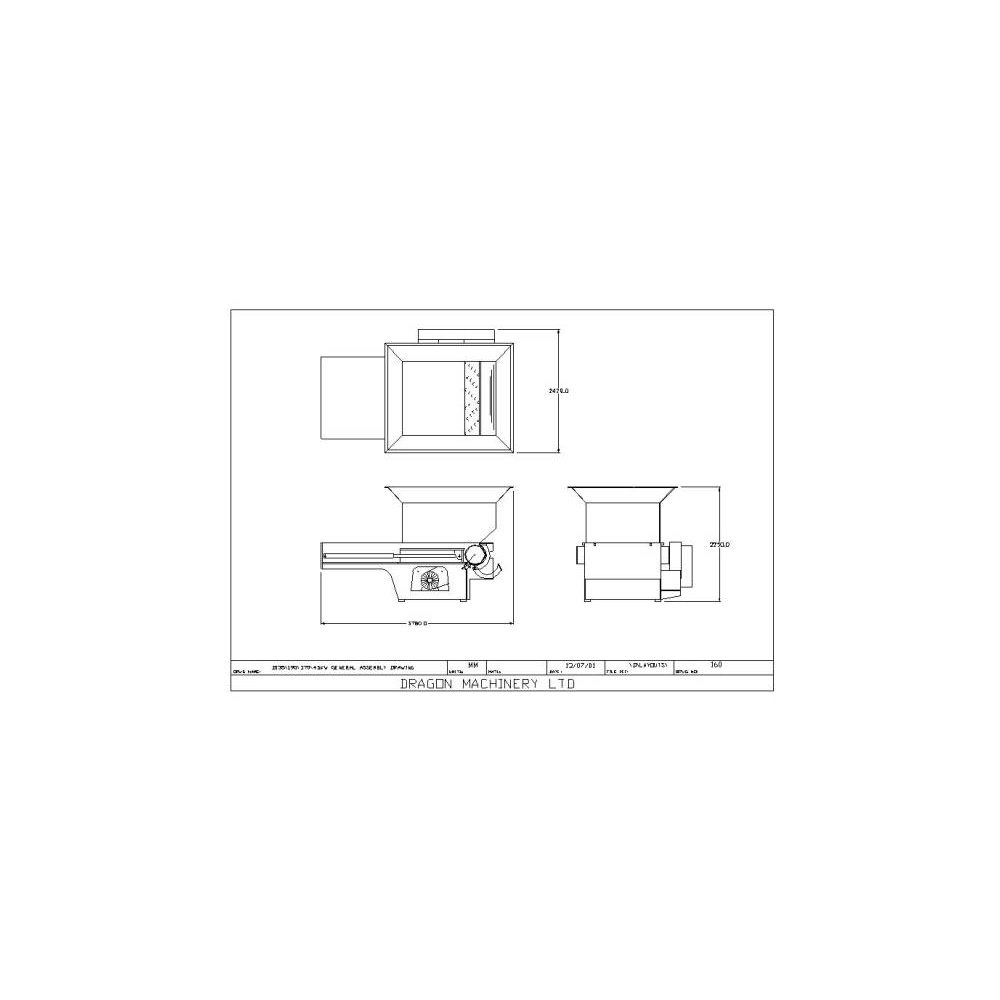

| Overall Dimensions |
3780mm x 2429mm x 2250mm |
| Noise |
Up to 85dB(A) in operation at 1 metre from machine |
| Belt Outfeed System |
Available at extra cost |
| Air Separation System |
Available at extra cost |
