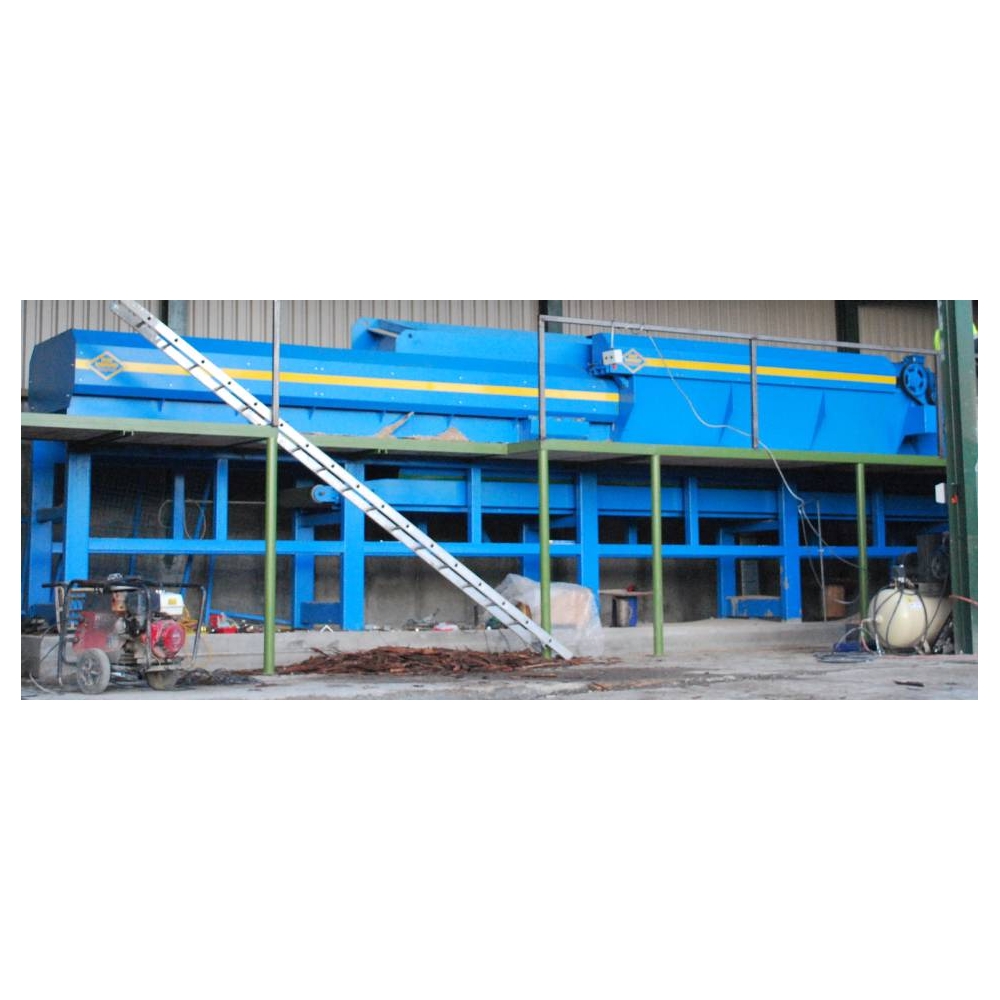

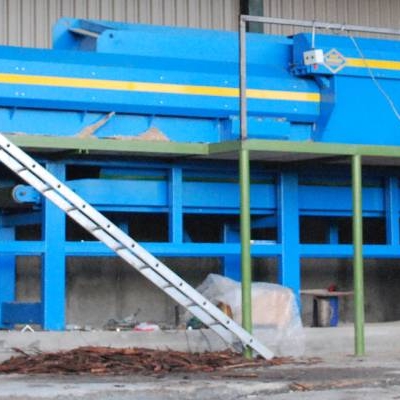

Blue Diamond 3.3m Single Box Shavings Machine Production Up To 3.5 Tonnes Of Wet Shavings Per Hour (twin Box With Double The Production Also Available)
Our Ref : 2208

Blue Diamond 3.3m Single Box Shavings Machine Production up to 3.5 tonnes of Wet Shavings per hour (Twin Box with double the production also available)


Log Box 3300mm x 975mm x 900mm
Cutting Rotor 250mm x 1016mm (2 off)
Cutting Tools 2 knives per slot x 12 slots = 24 knives per rotor
Rotor Speed 2650-3000rpm
Shavings Size Adjustable to suit customer requirements
Power - Rotor Motor 37kw x 2 directly coupled to rotor drive shaft
Power - Feed Motor 30kw x 1 for heavy duty chain drive
Capacity (estimated) 1.5 to 2 tonnes @15% m/c (dry)
Waste Outlet Gravity discharge below rotor
Discharge Conveyor Available as an optional extra
Supply - Mains 380-415/3/50 + Neutral
Supply - Control 24v a.c.
Weight 8300kg
Control Panel Included
Log Box Invertor Drive Included
Subframe Included
Extras Included 1 set (48) knives
Noise In excess of 95dba at 1m
