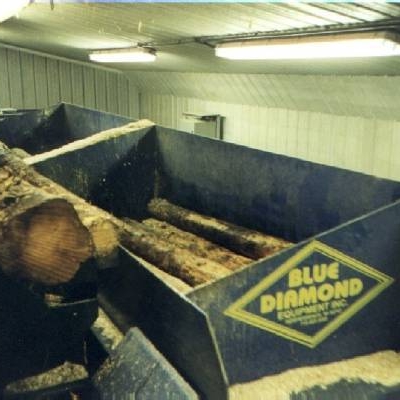

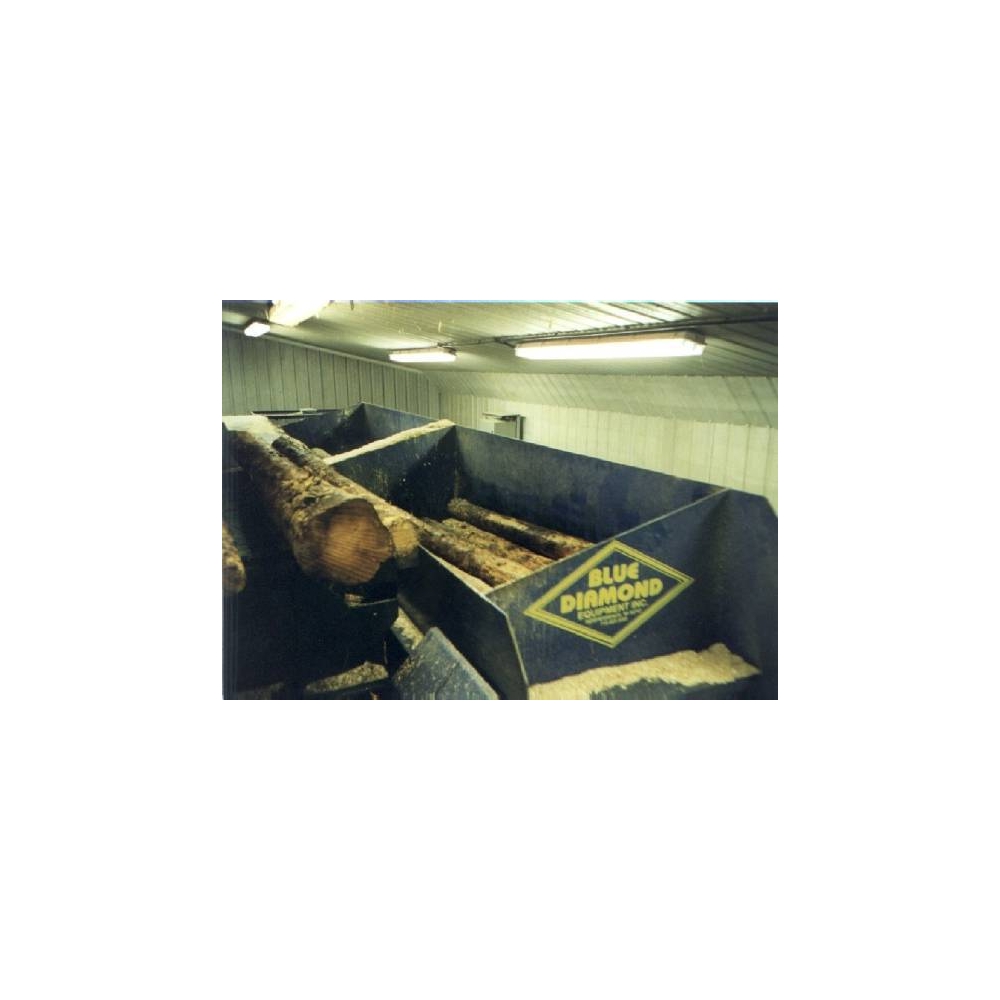

| Log Box |
2640mm x 1000mm x 750mm (2 off) |
| Cutting Rotor |
250mm x 1016 (4 off) |
| Cutting Tools |
2 knives per slot x 12 slots = 24 knives per rotor |
| Rotor Speed |
2650-3000rpm |
| Shavings Size |
Adjustable to suit customer requirements |
| Power - Rotor Motor |
37kw x 4 directly coupled to rotor drive shaft |
| Power - Feed Motor |
30kw x 1 for heavy duty chain drive |
| Capacity (approximately) |
6 tonnes per hour @ 55% m/c (wet) |
| Capacity (estimated) |
3 tonnes per hour @15% m/c (dry) |
| Waste Outlet |
Gravity discharge below rotor |
| Discharge Conveyor |
Available as an optional extra |
| Supply - Mains |
380-415/3/50 + Neutral |
| Supply - Control |
24v a.c. |
| Control Panel |
Available as an optional extra |
| Weight |
11000kg |
| Overall Dimensions (nominal) |
13250mm x 2850mm x 2350mm |
| Noise |
** In excess of 100dbA in operation |
| Sound Insulation |
Necessary and available at an extra cost |
| Extras Included |
2 x day commissioning in UK by our engineer |
| |
1 set (96) knives |
| |
24 x spare gibs |
| |
4 x chain drive chain connector bolts |
| |
Spare rotor bearing |
| Excluded |
Expenses flights and accommodation |
| ... |
(to be paid by the customer) |
